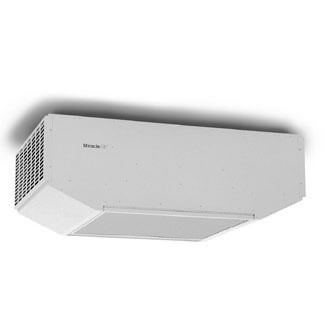

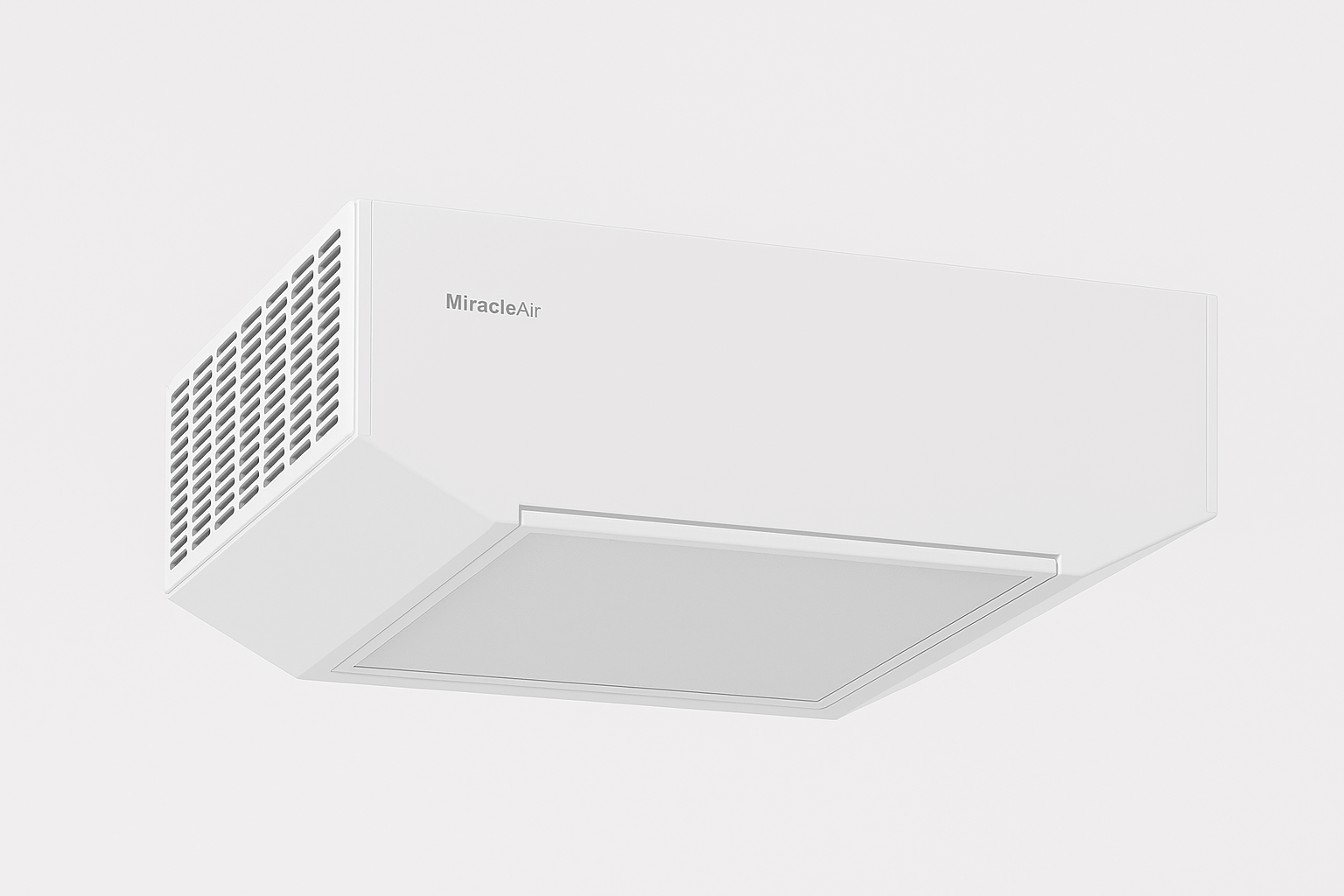

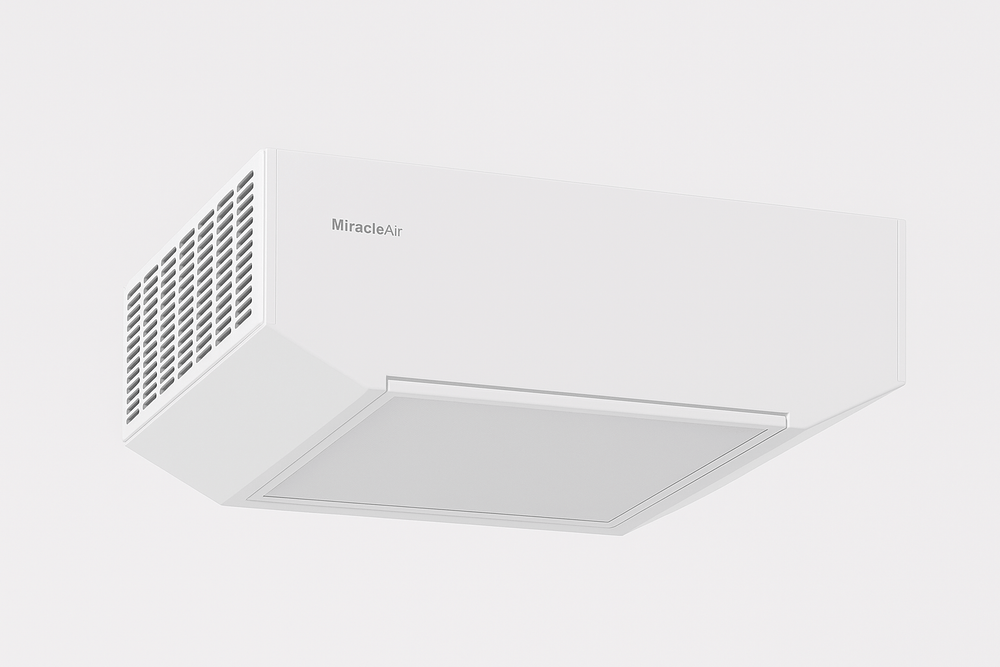

The MiracleAir CM-12-D, Deluxe Air Cleaner features 22 pounds of activated carbon. It's the ultimate surface-mounted solution for smoke & odors.
The MiracleAir CM-12-D Deluxe is a powerful commercial smoke-removal system built for spaces up to 850 sq. ft. It features 22 pounds of activated carbon to deliver exceptional control of cigar and cigarette smoke, odors, VOCs, and other gaseous contaminants.
Designed for easy solid-ceiling installation, the CM-12-D is a self-contained, HEPA-type air cleaner that captures 95% of particles at 0.3 micron. Its advanced filtration system removes smoke, odor, dust, pollen, and airborne debris while the large carbon modules provide deep, long-lasting odor and vapor reduction.
The CM-12-D combines high-efficiency particle capture with heavy-duty carbon filtration, making it a strong choice for commercial environments that demand reliable, continuous smoke and odor control.
3 Stages of Superior Filtration
- Stage 1 - Pre-Filter - The prefilter is a ½” thick washable aluminum mesh. It's designed to remove the larger particles and prolong the life of the subsequent filters. The prefilter is washable but should be replaced when showing signs of wear & tear.
-
Stage 2 - HEPA Filter - 102 square feet of HEPA-type media designed to remove dust, smoke, pollen, and other airborne particles with 95% efficiency (at .3 micron).
The HEPA filter should be replaced every 12-18 months depending on the severity of your application. -
Stage 3 - Carbon Filter - Two modules, each containing 10 disposable panels for a total carbon weight of 22 lbs. Carbon is excellent at removing odors and VOCs found in smoke, gases, and chemicals.
The carbon modules should be replaced every 18-24 months depending on the severity of your application.
How does the MiracleAir CM-12-D Deluxe Commercial Air Cleaner work?
The COANDA System
The air-cleaning success of the MiracleAir CM-12-D Deluxe is due to the "Coanda Aerodynamic Principle". Most cigar smoke air cleaners re-circulate the air in only one direction, which limits the amount of contaminated air that can reach the air cleaner. The unique 4-way method of air recirculation is multi-directional. It gets the maximum amount of contaminated air to the machine most efficiently. More air reaches the CM-12-D commercial air cleaner while eliminating annoying drafts. This creates 'people-comfort' as well as much better air cleaning results!
Features of the MiracleAir CM-12-D Deluxe Ceiling Mount Air Cleaner
- An onboard, solid-state 3-Speed controller which allows for easy adjustments of airflow.

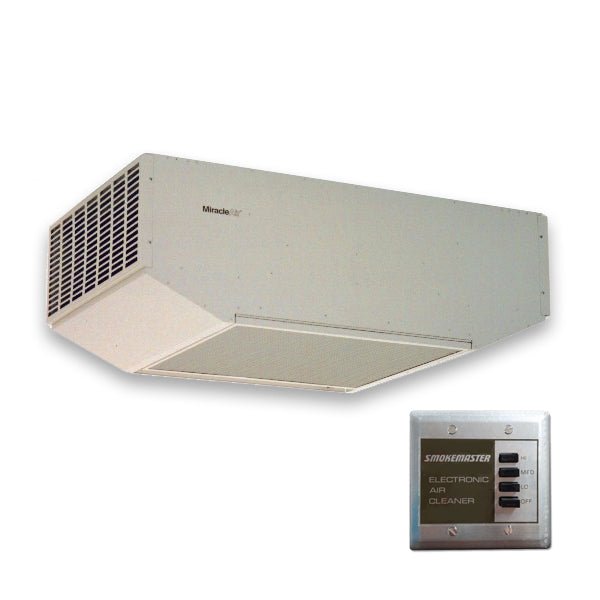

- Optional 3-speed wall-mounted remote is available for installation if desired.
- Low maintenance and long filter life are achieved because of the large volume of media used in the odor/V.O.C. disposable filters.
- The CM-12-D delivers efficiency, savings, and minimal maintenance costs by removing dust, smoke, pollen, and other airborne particles with 95% efficient (at .3 micron) HEPA-type filters.
- Filters are easily accessible for maintenance.
- Low Noise - Unique internal sound baffle and special sound-absorbing foam cabinet liner keep the Miracle Air CM-12-D to a minimal 69 dB(A) on the high-speed setting.
- Wall Mountable - If ceiling space is limited, the CM-12-D can be mounted on the wall. (Wall mount kit available.)
- Designed to handle heavy smoke and odor associated with cigar and hookah bars.
- Effectively controls airborne particulate and vapors within medical laboratories and testing environments.
- Extremely helpful in removing smoke from welding and soldering in light manufacturing and cottage industries.
