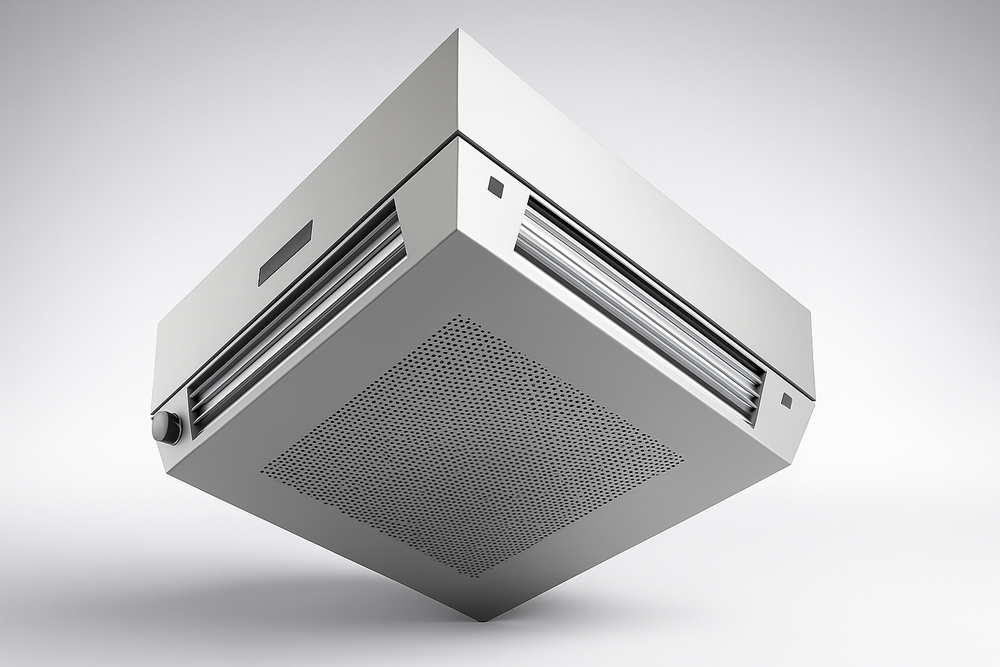

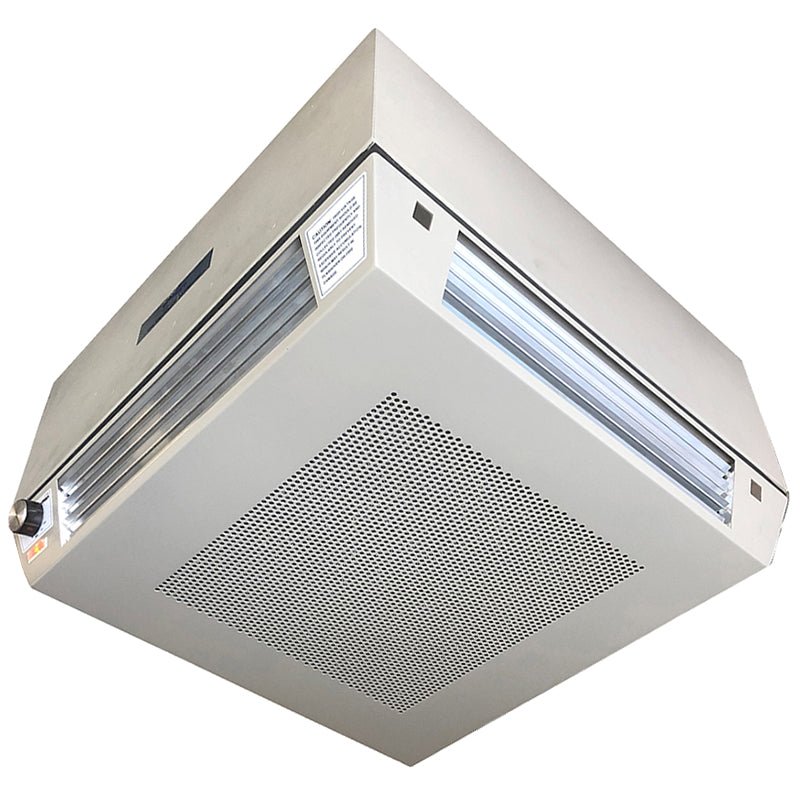

CA-1000 – CleanAire Ceiling Mount Electronic Air Cleaner

The CleanAire ceiling mount electronic air cleaner removes cigar and cigarette smoke and odors from indoor areas up to 6,000 cu. ft.

SKU: CA-1000

$1,495.00 $1,295.00

All accepted payments
Instruction Manual

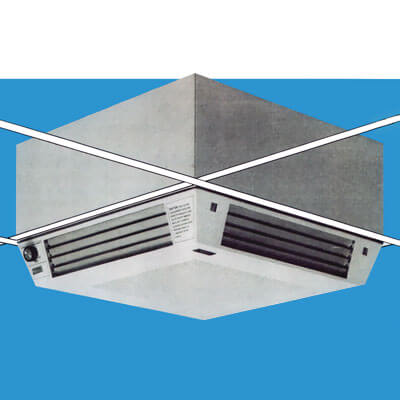

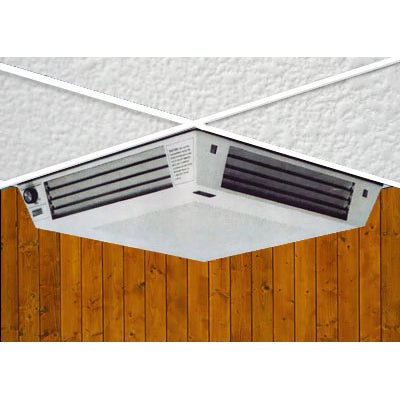

The CleanAire® CA 1000 Ceiling Mount Electronic Air Cleaner is a Self-Contained, Commercial Smoke Eliminator that fits into one 2 x 2 Ceiling Tile or can be Mounted Directly to Standard Ceilings.

The CA1000 CleanAire® electronic air cleaner combines a high performance electronic cell with an efficient airflow pattern to bring clean air to your entire area. Bars, restaurants and lounges love the CleanAire CA-1000 for cigar & cigarette smoke elimination.  And, the CA-1000 will reduce heating and cooling costs by minimizing the need to exhaust indoor air.

As the 3-speed fan pulls dirty air through the center intake, it immediately starts the cleaning process with a metal mesh pre-filter designed to remove large particles including dust, lint and hair. Next, the air passes through the electronic cell where very small particles including cigarette and cigar smoke, odors, welding fumes, kitchen smells, mold spores and vapors are electronically charged and trapped on the cell plates. As the air moves through the odor absorbing carbon post-filter, fresh, clean air is discharged on all 4 sides of the unit and circulated throughout the room. This aerodynamic airflow pattern keeps the air flowing continually through the unit where it's constantly cleaned and freshened.

Features of the CleanAire CA-1000 Ceiling Mount Electronic Air Cleaner

  • Cleans Air Better
    Maintains consistent output voltage to the electronic cell for maximum air cleaning efficiency
  • Quieter Performance
    Drop-down design allows for less air turbulence than flush mount units for quieter, higher capacity performance
  • Fits More Applications

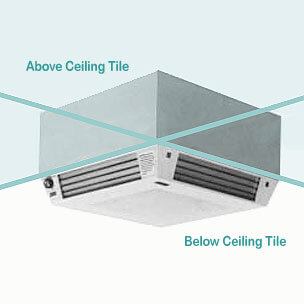

    Low profile design requires only 8-1/2" above the T-Bar. Only 4 inches extends below the T-Bar.
  • 100% Tested
    Each and every CleanAire electronic air cleaner is individually tested and operated for quality assurance
  • Reduces Heating & Cooling Costs
    By using the CleanAire CA-1000 commercial air cleaner, exhausting indoor air and bringing in outside air can be reduced to 1/3 of the minimum recommended 30 CFM per person.
  • Adjustable Discharge Louvers
    Clean air is discharged on all 4 sides for optimum air circulation
  • Removable Pre-filter and Grille
    Metal mesh pre-filter catch larger particles before they can enter the electronic cell.

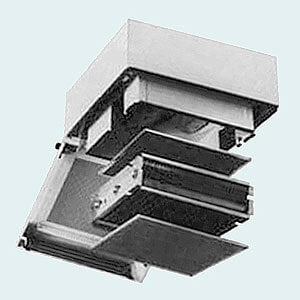

  • Hinged Access Door
    Allows easy access to components for periodic cell and pre-filter cleaning.

CleanAire CA-1000 Electronic Commercial Smoke Eater Specifications

Capacity Up to 1,000 Sq. Ft.
3 Speed High –  1,000 CFM  |  Medium – 800 CFM  |  Low – 600 CFM
Installation Options Can be ceiling mounted or dropped into 1 – 2′ x 2′ ceiling tile
Dimensions 23″ L x 23″ W x 12.5″ H
Sound Level H – 65 dB(A) | M – 57 dB(A) | L – 53 dB(A)
Cabinet 18 gauge painted steel
Weight Shipping – 73 lbs. | Installed – 64 lbs.
Electrical 120 V, 60 Hz | 3.5 amps
Warranty 1 Year
Certifications UL Listed

C21056 – Ionizing Wires for CleanAire CA-1000 Electronic Cell

38004 - Ionizing Wires for Smokemaster Electronic Air Cleaners - Sold in sets of 5.

Set of 6 Replacement Ionizing Wires for CleanAire CA-1000 Air Cleaner Electronic...

$59.00 Add to cart

Electronic Cell for CleanAir CA-1000

CA-1000 Replacement Electronic Cell

The washable electronic cell is designed to capture soot, pollen, tobacco and cooking smoke, dust and other annoying...

$399.00 Add to cart

Replacement Carbon Post Filter for CleanAir CA-1000

CA-1000 Replacement Post Carbon Filter

Activated carbon after-filter removes any lingering odors or vapors after the electronic cell has done its job. Air...

$39.00 Add to cart

Replacement Pre-Filter for CleanAir CA-1000

CA-1000 Replacement Metal Mesh Pre-Filter

Metal mesh pre-filter is designed to trap larger particles before entering the collection cell. Pre-filter can and...

$49.00 Add to cart
